Apply security update to Citrix ADC (CTX276688)

Reading Time: 4 minutes

At the time of writing this blog post Citrix released information about 11 new vulnerabilities discovered in their NetScaler line of products including Citrix Application Delivery Controller, Citrix Gateway, and Citrix SD-WAN WANOP. As sysadmins we want to keep our infrastructure secure and in this blog post I will show you how to apply the security update to the Citrix ADC (CTX276688) and mitigate for these vulnerabilities.

What to do now? Simple, upgrade to the latest version of Citrix ADC firmware. At the time of writing that is NS13.0 Build 58.32. Let me show you how.

If you followed my recent post Upgrade Citrix ADC firmware using CLI and you upgraded your Citrix ADC to version 13.0-58.30 according to my blog post then you should already be fine! Yay! The newly discovered vulnerabilities are documented in the Citrix Support Knowledge Center and is know by the number CTX276688. According to Citrix these vulnerabilities can only be exploited in very unique situations and circumstances and as far as they know, they are not yet used in the wild. I will show you how to upgrade Citrix ADC to the patched firmware and keep hackers at bay.

Preparation

We will use the same steps from my blog post Upgrade Citrix ADC firmware using CLI. The difference now is that I will do the upgrade from version 13.0 Build 58.30 to the latest release version 13.0 Build 58.32.

Download the latest firmware

According to Citrix we need to upgrade our ADC with version 13.0 Build 58.32. You can find that firmware here. If you open up that page you will see the important message regarding CTX276688:

Download the firmware and safe it to your computer. We will upload this file to the ADC and then start the upgrade.

Backup your current configuration

Before we start the upgrade process we need to backup the current configuration. You can do that using the steps I described here.

Start the upgrade

I am a big fan of CLI when it comes to upgrading these NetScaler appliances. But first we need to upload the new firmware to ADC. You can use the steps described here.

Start the upgrade script

Login to the ADC using SSH. I use Putty for this. After login in you need to go to the directory where you uploaded the new firmware file. If you followed my post that should be somewhere in /var/nsinstall/<directory_name>. I have uploaded my firmware to the directory /var/nsinstall/vikash.nl:

We can see the new firmware there. Now extract it using the following command:

tar –xvzf  build-13.0-58.32_nc_64.tgz

The tar -xvzf is the command you need to extract the file with name build-13.0-58.32_nc_64.tgz. Remember to replace the filename with the correct one. After the firmware is extracted you will have a lot of files there. The one we need is names installns. In your SSH / Putty session enter the following command to start the upgrade process:

./installns

The command start with a . yes. After typing in the command you will see the a similar screen like the one below indicating that the upgrade has started:

The update process will take a while. When the upgrade is finished you will be prompted to reboot the ADC. Enter Y and hit enter:

After the reboot let’s check the version and make sure everything went well. Open the management page (webgui) and check the firmware version:

You can check it using CLI. Login using SSH / Putty and enter the following command:

show ns version

You should get the following output displaying the firmware version of ADC:

If the version displays NS13.0 Build 58.32 then your ADC is protected from the vulnerabilities as described in CTX276688.

Steps for updating a Citrix ADC High Availability pair (HA)

The steps described in this blogpost apply in general for the ADC nodes which are running in a High Availability pair configuration. Every node can be upgraded using the same method I described in this post. Make sure you to upgrade the individual nodes in the following order:

  • Upgrade the secondary node first.
  • Reboot the secondary node.
  • Disable HA-sync on the secondary node using cli: set ha node -hasync disabled.
  • Upgrade the primary node.
  • Reboot the primary node.
  • Check that all the config is still there after the reboot of the primary node.
  • Enable HA-sync on the secondary node using cli: set ha node -hasync enabled.
Apply security update to Citrix ADC (CTX276688) Read More

Upgrade Citrix ADC firmware using CLI

Reading Time: 5 minutes

When running Citrix ADC it is vital to keep the ADC up-to-date. Usually Citrix ADC is very secure but every now and then they will discover bugs. That is when you need to update the firmware of the system. In this blog post I will show you how to upgrade Citrix ADC firmware using Command Line Interface (CLI).

Why do it using the CLI of there is a nice option in the webgui? In my experience doing it using the CLI is the most reliable way of getting the job done. The webgui is just not stable enough because on numerous occasions I have seen an upgrade fail when doing it using the webgui. And when such a system is running a crucial part of your infrastructure you don’t want to end up with a broken ADC. The CLI way has been rocksolid and delivers every time. It is not hard to do it if you follow the steps in this blog post.

Preparation

I will perform the upgrade on my ADC running in my lab environment. The version I am running here is 13.0 52.24. I will upgrade to the latest version. At the time of writing this post the latest version is 13.0 58.30.

Download the latest firmware

Download the latest firmware from the Citrix website. When you visit the website choose for the Firmware option:

Then on the next page scroll down to the Build section and download the latest firmware:

Backup the Citrix ADC configuration

I’m sure you already know this but often this step is still overlooked. Backing up the components in your network infrastructure is a vital part of running an IT-infrastructure. Your backup strategy for Citrix ADC depends in the platform you are running it on. I have mine running on Windows Hyper-V 2019 so making a snapshot before starting the upgrade is pretty handy. I will also show you how to make a backup of the ADC configuration from the webgui. Making a backup using the webgui has always worked in me experience so no need for CLI here.

Login to the webgui and in the left menu expand System and click on Backup:

Then click on Backup/Import button. You will be presented with several options. Enter a file name for the backup and something in the description that makes is easy to see why this backup was made. The most important part here is to select the Full backup level. Then click on Backup:

Now that the backup is made we need to download it from the ADC and keep is somewhere safe. Do this in case the upgrade does fail and you are not able to access the ADC using webgui of ssh. You will see an overview of all backups available on the appliance once you clicked on the Backup button as seen in the screenshot above. Select the backup you just made and from the action menu select Download to save the backup file to your local computer:

Start the upgrade

We have done our preperations and now we need to get the firmware we downloaded on the ADC and start the upgrade process.

Upload the new firmware

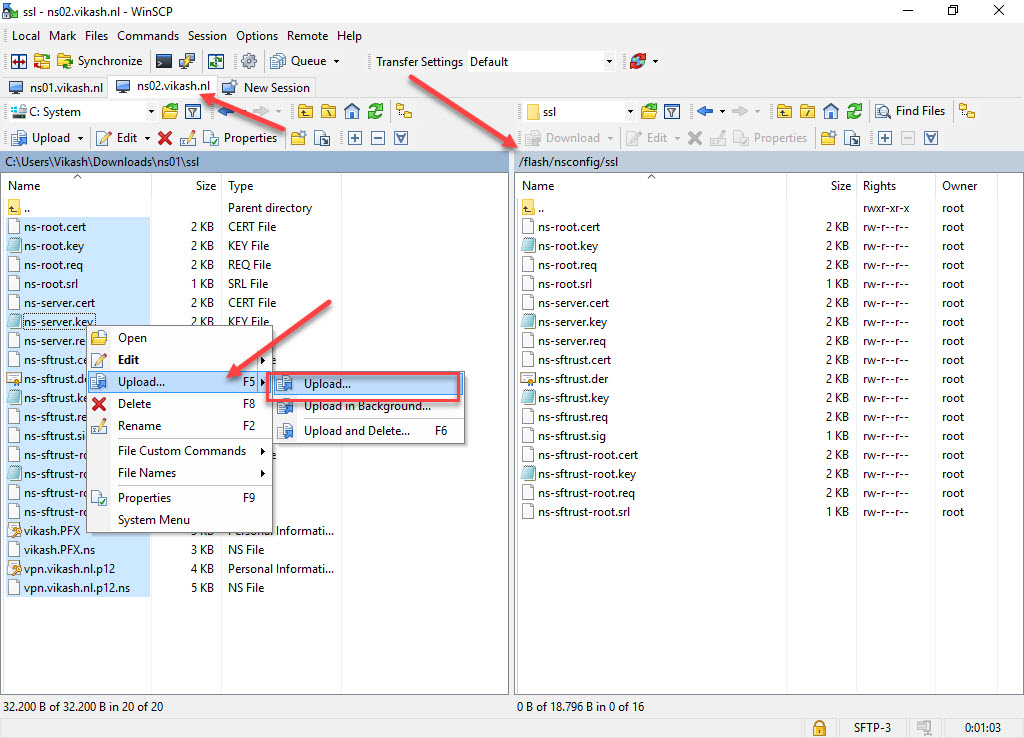

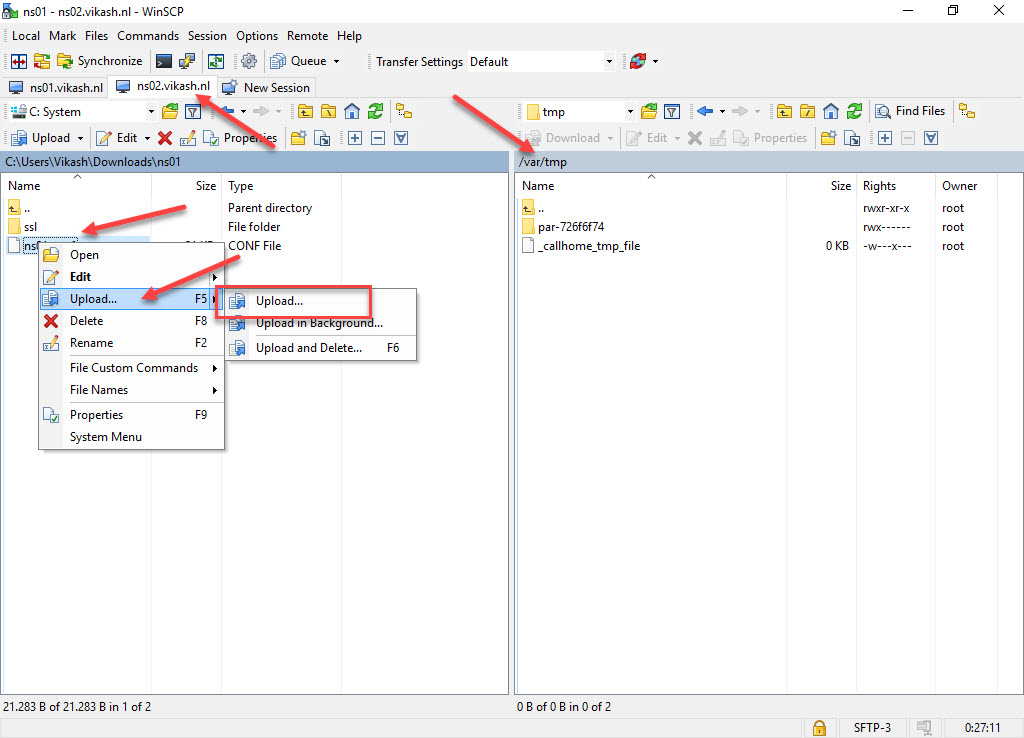

I use WinSCP to upload the new firmware to my ADC. Start WinSCP and login to your ADC using the option SFTP option:

After loggin in go to the /nsinstall directory and create a new directory there:

Upload the firmware using WinSCP:

Start the upgrade script

Login to the ADC using SSH. I use Putty for this. After login in you need to go to the directory where you uploaded the new firmware file. First enter the command shell to enter a shell:

Go to the directory where you uploaded the firmware file using WinSCP. On my ADC that is /var/nsinstall/vikash.nl:

We can see the new firmware there. Now extract it using the following command:

tar –xvzf build-13.0-58.30_nc_64.tgz

The tar -xvzf is the command you need to extract the file with name build-13.0-58.30_nc_64.tgz. Remember to replace the filename with the correct one. After the firmware is extracted you will have a lot of files there. The one we need is names installns. In your SSH / Putty session enter the following command to start the upgrade process:

./installns

The command start with a . yes. After typing in the command you will see the a similar screen like the one below indicating that the upgrade has started:

The update process will take a while. When the upgrade is finished you will be prompted to reboot the ADC. Enter Y and hit enter:

After the ADC has rebooted login using the webgui and check the firmware version to make sure the upgrade was successful:

How do I do it for ADC’s in a High Availability pair?

The steps described in this blogpost apply in general for the ADC nodes which are running in a High Availability pair configuration. Every node can be upgraded using the same method I described in this post. Make sure you to upgrade the individual nodes in the following order:

  • Upgrade the secondary node.
  • Reboot the secondary node.
  • Disable HA-sync on the secondary node using cli: set ha node -hasync disabled.
  • Upgrade the primary node.
  • Reboot the primary node.
  • Check that all the config is still there after the reboot of the primary node.
  • Enable HA-sync on the secondary node using cli: set ha node -hasync enabled.

Upgrade Citrix ADC firmware using CLI is not that hard if you prepare beforehand and make sure that you have backups. Even upgrading nodes in a High Availability configuration is easy once you follow the steps in the same order as I described above. Good luck and stay safe!

Upgrade Citrix ADC firmware using CLI Read More

Enable secure LDAP for Citrix ADC with LDAP signature signing

Reading Time: 6 minutes

The case

In this blog post I will show you how to enable secure LDAP for Citrix ADC with LDAP signature signing policy in order to tighten security in your network. As most of you know Microsoft will be retiring insecure LDAP communication on domain controllers. Check the Microsoft article here for an in-depth explanation. You can also check the following articles about LDAP signature signing:

  • CVE-2017-8563 – Windows Elevation of Privilege Vulnerability
  • ADV190023 – Microsoft Guidance for Enabling LDAP Channel Binding and LDAP Signing

So insecure communications to Active Directory is going away and we all need to switch the components in our network (which are talking to Active Directory for authentication) to use Secure LDAP (LDAPS). LDAPS uses SSL or TLS to encrypt traffic. Because the LDAPS traffic is encrypted we don’t need to worry about someone intercepting the traffic. If you intercept it, it’s encrypted so you won’t be able to read it. This change then is a good thing!

It so happens that a lot of ADC’s out there use insecure insecure LDAP to talk to domain controllers. As you can see in the screenshot below my own ADC has been setup to talk to my domain controller using insecure LDAP on port 389:

The screenshot above shows the basic LDAP server configuration pointing to my Active Directory domain controller. When I click the Test Network Connectivity button you see that everything is fine. This is the way a lot of these ADC’s are setup and when insecure LDAP to domain controllers is not working anymore somewhere during this year, this will break and that means that users will not be able to authenticate on you ADC and login to for instance Access Gateway VPN (if they are using that). In the end it will affect everything the ADC is providing your users with that require authentication from your Active Directory.

That’s why I will show you in this blog post how to get ahead of this change from Microsoft and prepare you Citrix ADC to Enable secure LDAP for Citrix ADC with LDAP signature signing.

What needs to be done

We need to reconfigure the ADC to use Secure LDAP (LDAPS). This can be done using that same insecure LDAP port (port 389) but tell the Citrix ADC to use TLS communication. Or you can choose to communicate to the Active Directory using port 636 and use the SSL option. The Active Directory only listens to LDAP with SSL encrypted traffic on port 636.

What group policy are we talking about

Ok all those articles are fine but let’s get pragmatic and let’s find the policy on the domain controller which will (somewhere this year) block insecure LDAP. In the end you want to know what will cause the problem and how to resolve it. Let me show you. To find the policy start mmc.exe on your Active Directory domain controller. Then click on File -> Add or Remove Snap-ins and find the Group Policy Management Editor. Click on Add:

Click on Browse:

Make sure you doubleclick the Domain Controllers folder here! You will see that the folder has the name of your domain in it. In my case it is Domain Controllers.vikash.nl:

Once you are in the folder you will find the policy we are looking for. The name should be Default Domain Controllers Policy. Select that and click on OK and then Finish. Finally click on OK and you should see the mmc showing you something like this:

The policy setting Microsoft is going to change in order to enforce Secure LDAP is named Domain controller: LDAP server signing requirements. Find it under Computer Configuration -> Policies -> Windows Settings -> Security Settings -> Local Policies -> Security Options:

You can see that the setting here is None. This is the default setting and Microsoft eventually will change this to Require signing and in the basic this is all there is :). So for testing purpose let’s change the setting to Required signing and re-test our LDAP Server setting on the Citrix ADC. Note that when you change the setting to Require signing you will get a popup with a warning message. Click on Yes:

Now the setting is changed and Secure LDAP is being enforced because now it says Require signing. The policy setting will look like this:

Head over to the management webgui on the ADC and go to the Authentication LDAP Server page and click on Test Network connectivity. It will show an error which basically tells us that the Active Directory domain controller is not accepting insecure LDAP anymore:

Ok now we have the policy on the Active Directory to require LDAP signature signing and the expected error on the ADC when we make a PLAINTEXT LDAP request. Now I will show you how to fix this.

Domain Controller Certificate

Before we can do secure LDAP requests to our Active Directory Domain Controllers we have to make sure that the domain controller is using a Certificate. This is a requirement so make sure that this is working and in place. On my domain controller I am running AD Certificate Authority Role (CA):

The CA role allows me to easily issue certificates in my domain. In the screenshot below you can see that I have a certificate issued and activated on my domain controller:

Note that if you don’t have a certificate on your domain controller installed and active you will not be able to let the Citrix ADC do secure LDAP requests.

Enable Secure LDAP on Citrix ADC

Ok now we have our certificate setup on our domain controller and let’s continue to setup secure LDAP on ADC. You can do secure LDAP on port 389 with TLS or switch to port 636 with SSL. Please keep in mind that, depending on which of the below solutions you choose, you might have to adjust firewall rules.

Secure LDAP using port 389 with TLS

If your ADC is setup to use insecure LDAP it is doing this using port 389. You will see in the management webgui of the ADC that Security Type is set to PLAINTEXT:

So LDAP on port 389 can either be insecure or secure. Now we want it to be secure so the only thing you have to change here is set the Security Type to TLS. You won’t even have to change your firewall rules and everything will be running fine. So set the Security Type to TLS and click on Test Network Connectivity:

You should get all greens now and no errors. Make sure to press OK on the bottom of this screen to save your changes.

Secure LDAP using port 636 with SSL

The other option is to switch over to port 636 for LDAP requests. All LDAP communication on port 636 require encryption unlike LDAP on port 389. So on the ADC management webgui navigate to the LDAP configuration server and not set the Security Type to SSL. You will see that the ADC automatically changes the port to 636. Click on the Test Network Connectivity button and everything should be fine and green:

Note that in the green field it will say that LDAP communication is making use of port 636 now. Make sure to press OK on the bottom of this screen to save your changes.

To sum up

Using Secure LDAP on the Citrix ADC not only gives you a better security but also gives you other advantages like allowing password changes for users. If your users are able to do password changes already then chances are that you already have everything in place for that moment when Microsoft decides to enforce LDAP signature signing. And if not then I hope this blog post has helped you enable secure LDAP for Citrix ADC with LDAP signature signing. Be secure!

Enable secure LDAP for Citrix ADC with LDAP signature signing Read More

Added value of Citrix Endpoint Management with Microsoft EMS/Intune

Reading Time: 4 minutes

What is going on?

As you know, that if you do anything with Enterprise Mobility Management and Office365 apps for Bring Your Own Devices (BYOD) or Company Owned Devices (COD), you can hardly do anything without Microsoft EMS/ Intune these days. We all know the most popular Office365 apps: Word, Excel, Outlook and PowerPoint. Other Office 365 apps like Microsoft SharePoint of Microsoft Dynamics 365 may be less popular but are still mission critical for organizations.

I have yet to encounter an organization that only uses Microsoft Office 365 apps on mobile devices. How about you? Mobile app deployment of most enterprise organizations these days looks like this:

  • Office 365 apps.
  • Other native mobile apps.
  • Custom build apps.
  • Web and SaaS apps.
  • Virtualized apps.

So, all these corporate apps have to be delivered to the end user on their device. It also means that you, as the company, want to have an insight in what is going on in these apps. The data in these corporate apps is yours, so you want to know how your data is being handled by the app on the user device? How is the user experience, regardless of internet being slow or even not available? Or on what platform does my app run? Your IT department wants to be able to answer all these questions.

How do we do it?

This is where Citrix Endpoint Management comes in! It allows us as IT to protect and isolate corporate data and apps from personal apps and data. Do you worry about how to deliver your corporate apps to the user? Stop worrying because with Citrix Endpoint Management comes with an app store. This is a secure and private app store specifically designed for the enterprise. In this app store you can use corporate apps and public apps. You need a public app to stay on a specific version for say compliance reasons? No problemo with the app store integrated in Citrix Endpoint Management. The Citrix Endpoint Management Appstore allows you to use apps from public app stores with your corporate policy on them! How cool is that.

Citrix Endpoint Management also delivers functionality like exchanging data and documents between Office 365 apps and corporate apps. That is not all. Because Citrix Endpoint Management can deliver per-app-micro-vpn. Your IT department can guarantee how data in motion is being handled. This is where Citrix Application Delivery Controller (ADC) comes in play. Formerly known as NetScaler, ADC can provide per-app functionality for all the corporate mobile apps. See the diagram below.

Overview Citrix Gateway for micro VPN
Overview Citrix Gateway for micro VPN (Source Citrix)

Let’s say that your employee is on the other end of the world and needs access to that very important research document? No worries. ADC will make sure that the session to deliver that document to the mobile device is fully secured and encrypted. Also, when the document is on the mobile device, Citrix Endpoint Management will secure that data at rest. How cool is that!

Micro-VPN to on-premise data (Source Citrix)
Micro-VPN to on-premise data (Source Citrix)

Security nirvana does exist!

It does when you use Citrix Endpoint Management with Microsoft EMS/ Intune. I often get the question: Vikash, why do you need Citrix Endpoint Management when you have Intune? My answer then is simple: Do you want first-class security, enhanced user experience and flexibility for apps and devices? You need Citrix Endpoint Management with EMS/Intune.

Let me explain. With Citrix Endpoint Management we can see what is going on in the communications layer for every user and every session and every app. That means we can deploy access policies based on app, user or device. And with device I mean not only mobile devices but also laptops and tablets. All these devices in the end-user space can now be made fully compliant with your corporate IT security policy! Amazing.

Interaction between Office 365 apps, ShareFile and Secure Mail (Citrix mobile apps) is seamless. Citrix makes that possible, because they use Microsoft EMS SDK. The data on the device stays in the secure enclave provided by Citrix Endpoint Management. While other vendors need to make a so-called bridge to exchange data between Office 365 apps and their corporate apps, Citrix mobile apps are “Intune-enlightened”. Below is an overview of the seamless interaction.

Secure Mail with Intune App Protection (Source Citrix)
Secure Mail with Intune App Protection (Source Citrix)

I am convinced!

Let’s face it. If you have Office 365 apps running on mobile devices, then you need an EMS / Intune infrastructure! Because you want to know what happens with your corporate data on those devices right? No questions there, if you ask me. But nowadays with security being more and more a critical aspect for enterprises you want to be at your a-game. Citrix Endpoint Management enables you just to do that. Let’s talk bullet points here:

  • Do you have Exchange on-prem? Regardless you want the higher level of security with the per-app vpn option.
  • Security for data in motion and data at rest.
  • Fine grained setup of policies for Mobile Device Management and Mobile Application Management.
  • Seamless integration of all Office 365 apps with Citrix Secure Mail. It just works.
  • Single pane of glass to manage different devices and platforms.
  • Wide range of supported devices (MacOS, ChromeOS, tvOS, Raspberry Pi, Android, iOS, Windows 10).
  • Enterprise app store for all your corporate apps.

Below is an architectural overview of how Office 365 apps can be integrated with Citrix Endpoint Management.

Architectural overview (Source Citrix)
Architectural overview (Source Citrix)
Added value of Citrix Endpoint Management with Microsoft EMS/Intune Read More

Setup Citrix NetScaler Gateway for Citrix XenMobile Server 10.9

Reading Time: 9 minutesIn this blog post I will show you how to setup Citrix NetScaler Gateway for Citrix XenMobile Server 10.9. You need Citrix NetScaler for XenMobile Server if you have the following scenarios:

  • Micro VPN access for access to internal resources.
  • Use Citrix Endpoint Management with Microsoft Intune/ EMS.
  • Micro VPN access for business apps to internal application servers or data.
  • Use XenMobile Apps for iOS or Android.

In this blog I will go through all the steps needed to successfully implement Citrix NetScaler for XenMobile Server, starting with importing the NetScaler appliance on my hyper visor and ending with a completed setup on the NetScaler ready for production. Before you start you have to setup and configure Citrix XenMobile Server 10.9. Check my blog post here to setup XenMobile Server 10.9.

Before we can start you have to make sure that you have the requirements in place. Nothing is more annoying than finding out that you forgot something during installation. This is the requirement list:

  • Minimum NetScaler 10.5 build 66.9. I am using NetScaler 12.1 build 49.23.
  • Platform/Universal license.
  • Public SSL certificate.
  • Several IP addresses. I will make a list for you.
  • DNS host names (FQDNs) which are accessible from the internet.

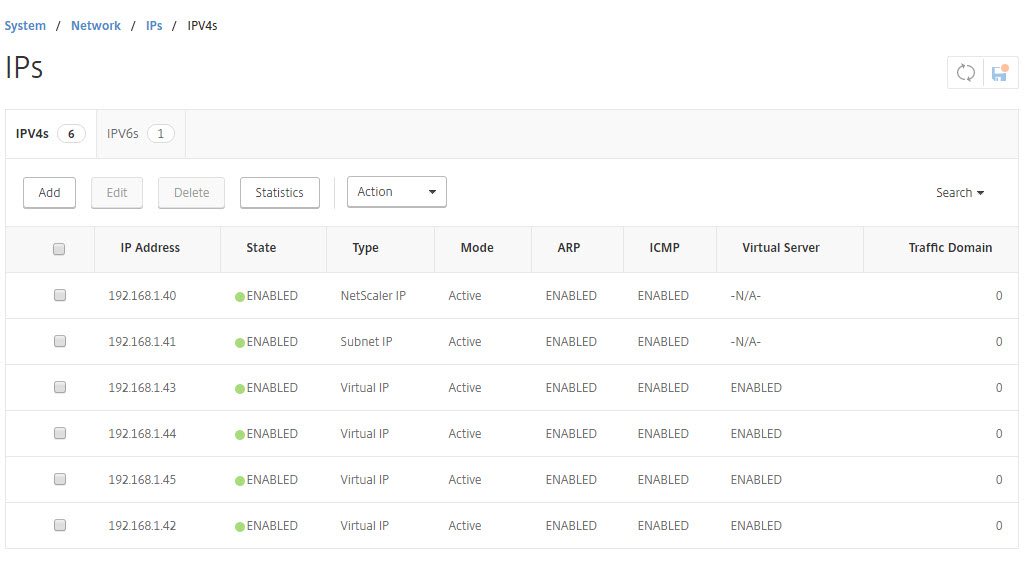

Let’s make a list of IP addresses we will need on the NetScaler. These IP addresses are all private IP addresses in my case, but also at customers I visit. This is because the NetScaler is always placed behind a firewall which does all the NAT stuff to map external IP to internal IP. So, in the end you will need a public IP of course which you will then map on your firewall to the NetScaler. This goes beyond this post. Check your firewall documentation how to do this. Below is the IP address list I will use for my setup:

FunctionIP address
NetScaler IP192.168.1.21
Subnet IP192.168.1.22
XenMobile Gateway Virtual IP192.168.1.23
XenMobile Gateway Virtual IP for MAM192.168.1.24
XenMobile Gateway Virtual IP for MDM192.168.1.25

Import Citrix NetScaler on Citrix XenServer

Make sure you download the correct NetScaler appliance (VPX) from Citrix. I have Citrix XenServer running so I downloaded the appliance for XenServer. Let’s start by importing the virtual Citrix NetScaler on XenServer. Start Citrix XenCenter and click on File->Import.

Locate the .xva file you downloaded from Citrix website. Browse to it and select it. Click then on Next.

Select the XenServer host you will import the appliance to. I have only one XenServer host running in free-mode so I will use that. Click on Next.

Select the storage you will import the NetScaler on. Click then on Import.

Select the network interface you will use to let the NetScaler appliance communicate on the network. Click then on Next.

Review your selections and if everything is ok you can start the actual import. Check Start VM after import to continue the setup. Click here on Finish.

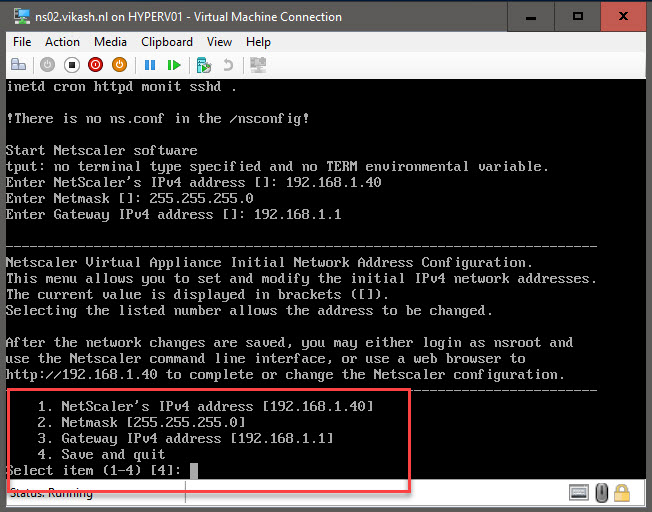

After the import is finished, go to the console using XenCenter. The appliance will boot and, on the command-line, will ask you to configure network settings. The IP address here is the one we reserved for the NetScaler IP (NSIP). Enter the IP and hit enter.

Enter all the network configuration information (like netmask and gateway) and choose option 4 to save. The NetScaler will now reboot. After the reboot we can continue the initial configuration using a web browser.

Initial setup Citrix NetScaler

Open a web browser and go to http://<NSIP>. I am using 192.168.1.21 for my NSIP. Login using nsroot as username and nsroot as password. Make a note for yourself to change this after you are done with the configuration. Click on Log On.

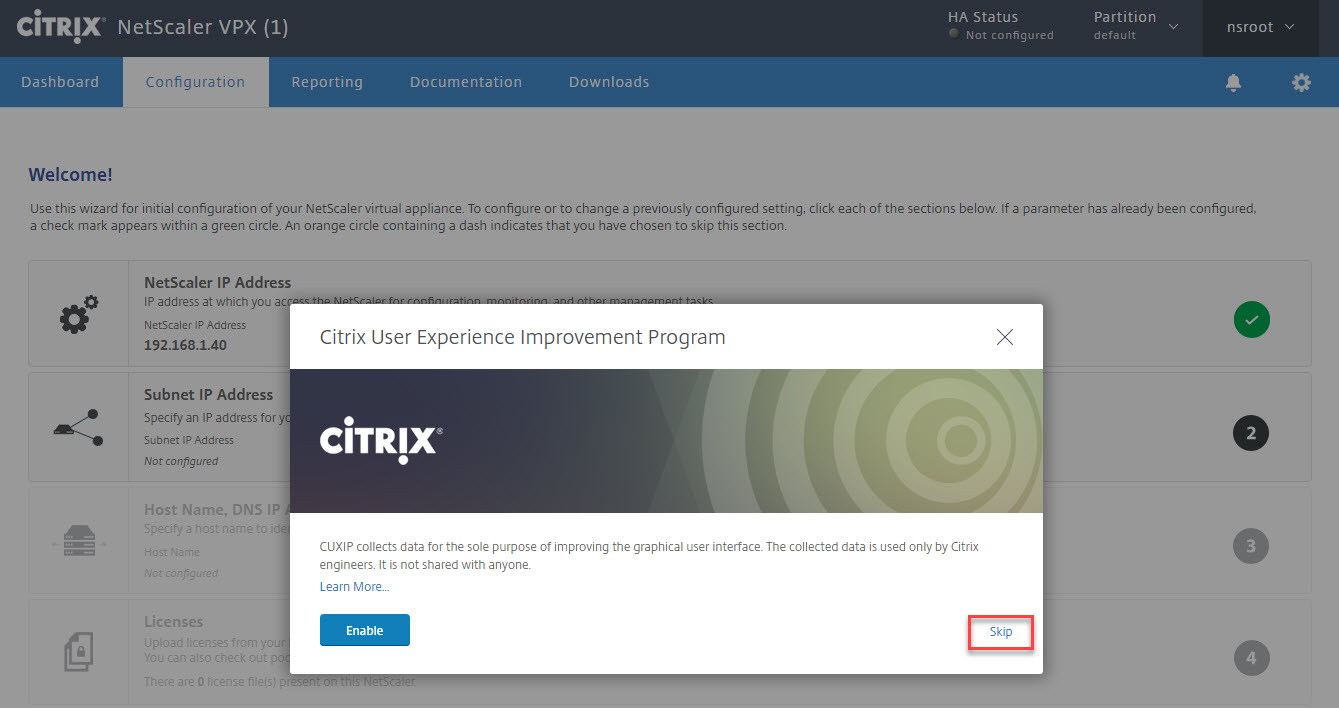

The initial configuration will automatically start, and you will be prompted to opt-in for the Citrix User Experience Improvement Program. I choose Enable but you can skip this of course.

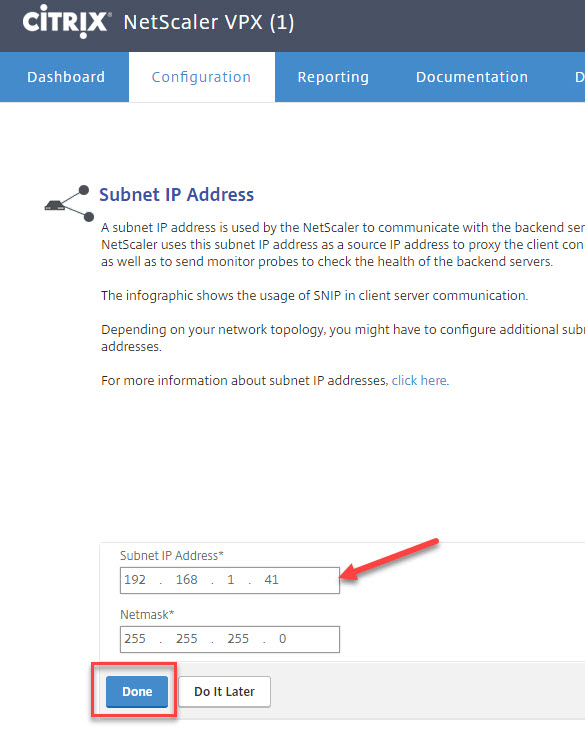

Next step is to specify a Subnet IP. Click on Subnet IP Address.

Enter the IP you reserved to be your subnet IP. I will use 192.168.1.22. Enter the corresponding netmask and click on Done.

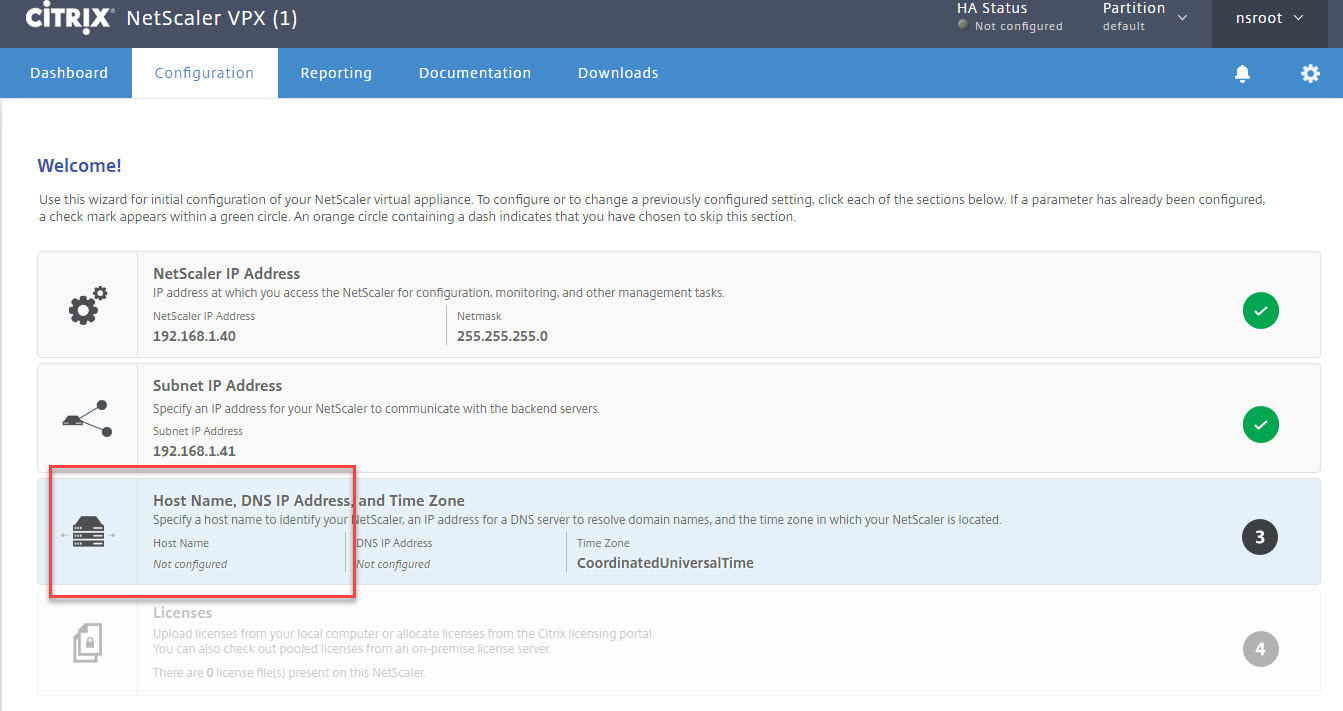

Next step is to configure DNS IP Address, host name and Time Zone.

Enter the information matching your environment. In my case my DNS server is 192.168.1.15. The Host Name can be anything you want, it does not matter because we are using a VPX. If you are using an MPX (physical NetScaler appliance) make sure to note the host name because then your license file is linked to the host name. In the VPX the license file is linked to the mac address the virtual network interface. That’s why the Host Name can be anything here. Select the correct time zone and click on Done.

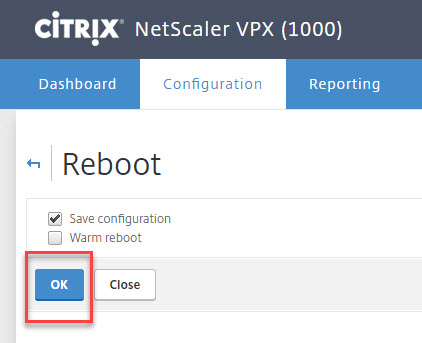

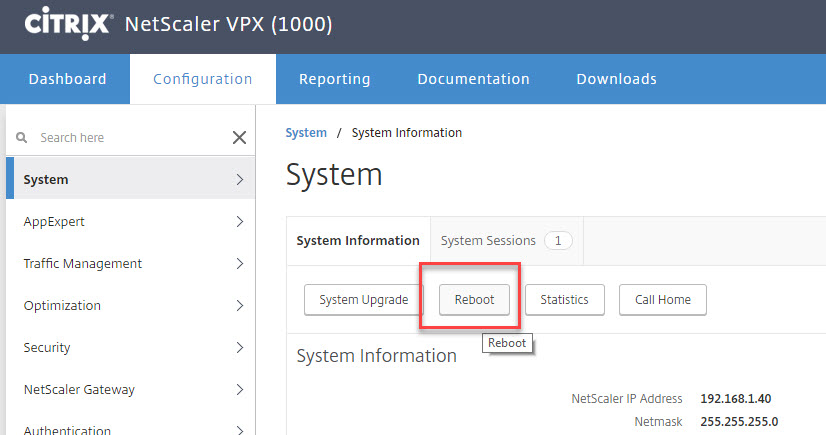

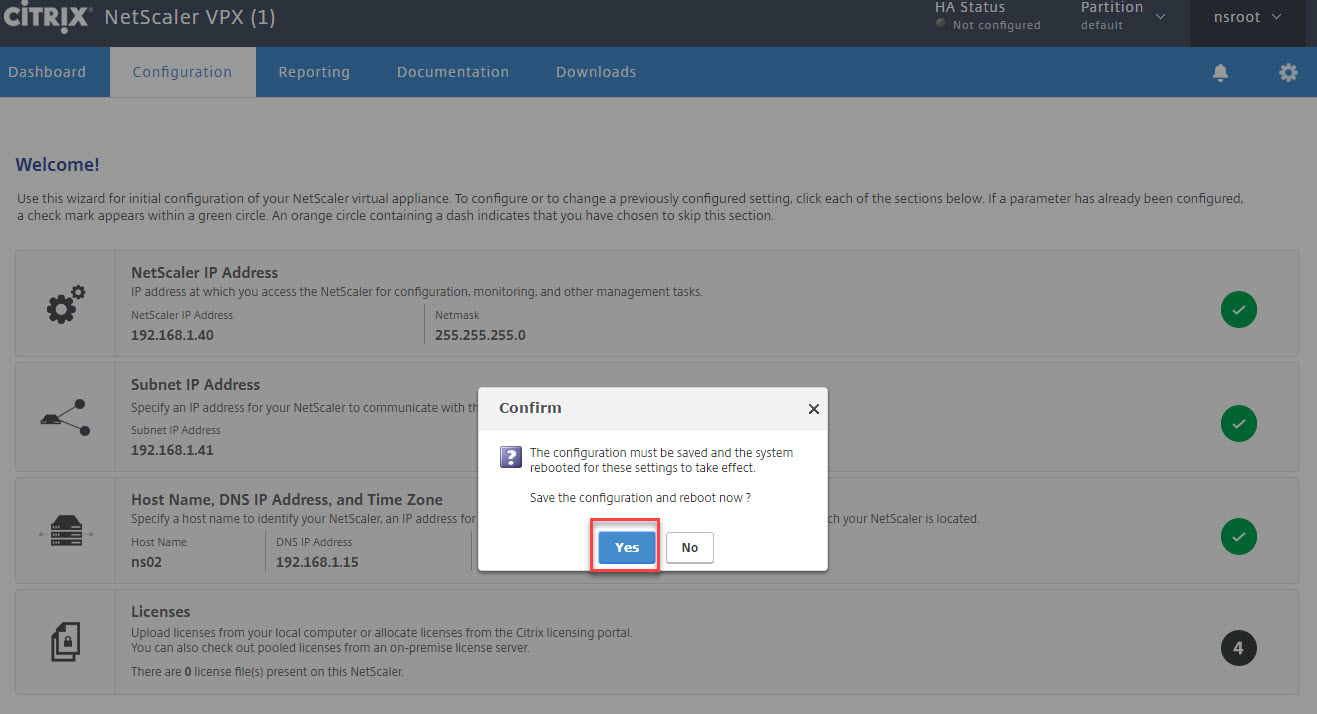

The NetScaler will reboot now to save the settings and let the changes take effect. Click on Yes.

Wait for it to reboot and leave the browser window open :).

Configure Licenses

The next step is to configure licenses. We need certain functions which are unlocked with the correct license for NetScaler. If you are only testing, you can go for a evaluation license for 90 days. During the evaluation period all the features of NetScaler are available to you. The features you need in NetScaler which require a special license are:

  • Load Balancing.
  • NetScaler Gateway for micro VPN and access to corporate resources.

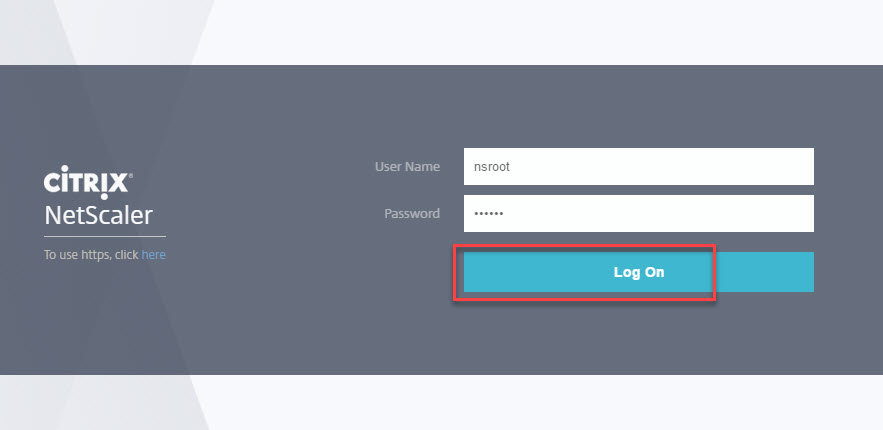

After the NetScaler has rebooted login with nsroot username and password. Go to System -> Licenses and click on Manage Licenses.

Click on the button Add New Licenses.

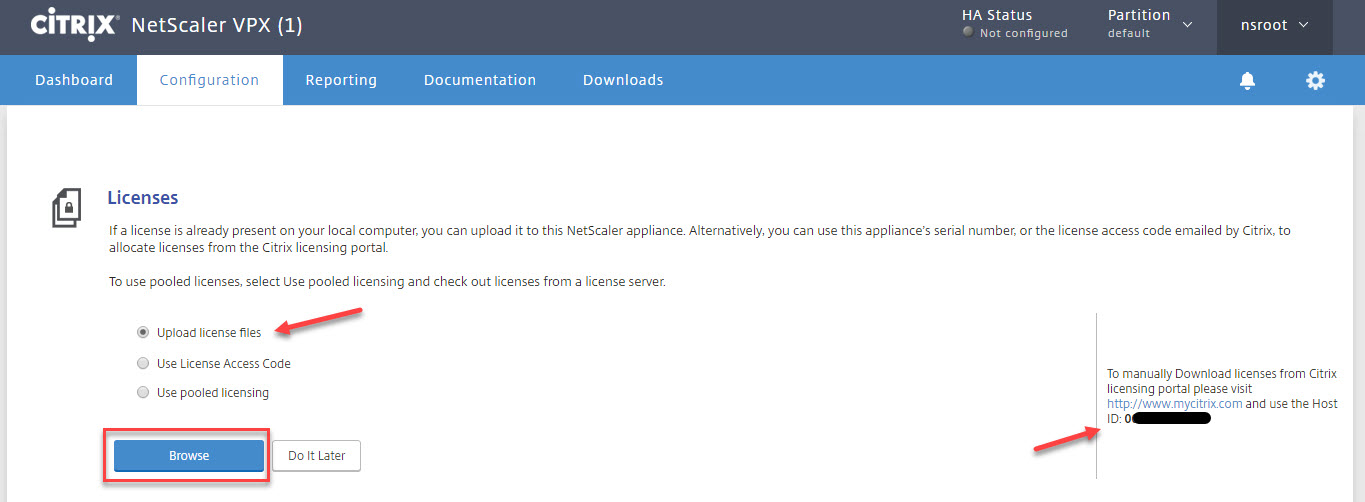

Choose the option Upload license file. You must allocate the license file first using the licensing tools in the Citrix website. Make sure that when you allocate the NetScaler license on the Citrix website, enter the correct Host ID. The Host ID is displayed on the right side of the window. It is the mac address of the virtual nic. If you have multiple virtual nic’s configured, it will be the mac address the nic which is first listed by in the properties view of the appliance. Click on Browse to locate the license file.

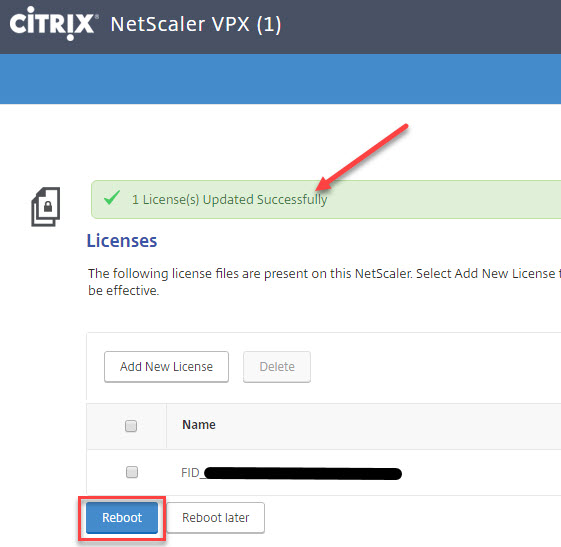

After the license file is uploaded the NetScaler needs to reboot to activate the license file and the corresponding features. Click on Reboot.

Click on Yes.

Wait for the reboot to finish. Leave your browser window open.

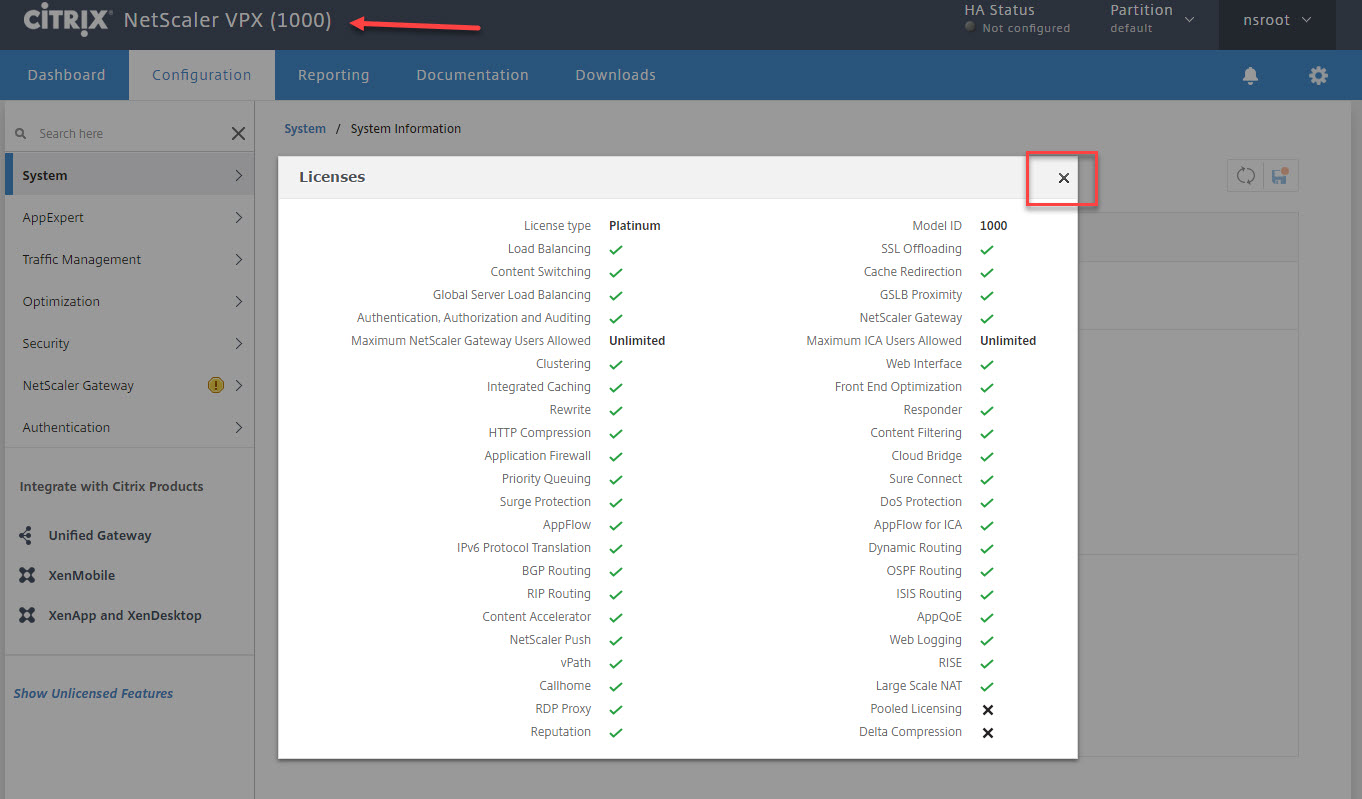

After you login you will see a overview of the new licensed features and the VPX version.

Import SSL certificate

Next step is to import your SSL certificate. I am using a wildcard SSL certificate. If you are not using a wildcard certificate, check my blog post about setup and configuration of XenMobile Server 10.9 here to see what hostnames (FQDNs) you need in your SSL certificate. In the past I have done a blog post and showed how to import an SSL certificate in .pfx format on the NetScaler. Check that blog post here.

After I imported my certificate this is my SSL overview on my NetScaler.

Setup NetScaler for XenMobile

Now it’s time to setup the NetScaler for XenMobile. I have setup XenMobile Server 10.9 in a previous post here. In that blog post I showed you the ins-and-outs of the setup and configuration process of XenMobile Server. And to make the XenMobile resources available to our end-users we need to integrate NetScaler and XenMobile. NetScaler supplies an authentication mechanism for remote devices to the internal network and other MAM functionality.

For my blog I will use the XenMobile wizard which is supplied with NetScaler. This wizard is very good at getting the job done (pragmatic approach) and gets better with every new version of NetScaler. Login in to NetScaler using your browser and scroll down in the left column and click on XenMobile. Then click on Get Started.

Make sure that the options Access trough Citrix Gateway and Load Balance XenMobile Servers are checked. Then click on Continue.

Enter the IP address you will use for the Virtual Server (VIP) for NetScaler Gateway. Leave the port on 443. Click on Continue.

Select the certificate you want to use for the NetScaler Gateway VIP. This is my wildcard SSL certificate which I previously imported. Click on Continue.

The next step is to add your Active Directory/LDAP configuration. This is used for by NetScaler for user authentication in your Active Directory. Make sure that you have a service account in your Active Directory configured which you will use here. Enter the information and Click on Test Connection to test the configuration. Everything should be green. Click then on Continue.

This next step will ask you the FQDN for you MAM functions. Fill in the same FQDN here that you used when setting up XenMobile according to my post here. In my case that is: xnmob01.vikash.nl. Also set the IP address you will be using for the Load Balancer. Click then on Continue.

Next, we must select the certificate for XenMobile. This has to be same certificate you are using on your XenMobile server! In my case I have a wildcard running on my XenMobile Server and the same one on my NetScaler.

Now we have to tell NetScaler where the XenMobile server is. Click on Add Server.

Specify the IP address for XenMobile Server. I have my XenMobile Server running on 192.168.1.19. Fill in the IP address and click on Add.

Now it will list the XenMobile Server. Click on Continue.

Click now on Load Balance XenMobile Servers.

This is the IP address you will use to Load Balance MDM. Specify a name and then click on Continue.

You will get an overview of the Load Balancing Virtual Server Configuration. Click on Continue.

Then click on Done and we are done!

You will be taken to the Dashboard and see the configuration you made using the wizard.



We can see the different components the wizard added. See below the screenshots to get an idea where they are in the NetScaler configuration.

This concludes this blog post. In following posts, I will show you how to enroll devices using XenMobile. Feel free to contact me of you have any questions or comments.

You can follow me on twitter or add the RSS feed from my blog and you will be notified when I add new posts.



Setup Citrix NetScaler Gateway for Citrix XenMobile Server 10.9 Read More

Copy NetScaler configuration and change all the IPs

Reading Time: 6 minutesCopy NetScaler configuration and change all the IPs is something you will have to do eventually when Citrix NetScaler is your playing field. Some customer will ask you to copy a running configuration to a new NetScaler, because they are redesigning the network or they need an exact replica of the production NetScaler for testing purposes. So you will have to move the configuration to a new NetScaler and change the IP addresses to match the new network situation. This can be done in a several ways, but in this post I will show you how I do it. Because when you have have little time and is has to be done in a fast and reliable way, I believe this is the way to go. Let me show you how in this post.

Deliverables of this post:

  • Copy a running (production) NetScaler config to another NetScaler.
  • Change the NetScaler IP (NSIP), Subnet IP (SNIP) and Virtual IP (VIP).

Requirements for the configuration:

  • Same version and build on every NetScaler (www.citrix.com).
  • NetScaler License (same license type on both appliances).
  • Ip addresses for the new NetScaler (NSIP, SNIP and VIP).

The steps in this post require you having extended knowledge of NetScaler command prompt (SSH). It is very important you understand what is going on in the ns.conf file. This is the file where all the configuration of the NetScaler is stored. If you mess up this file, you will have to restore it from a backup. Furthermore make sure that your old and new NetScaler is running the same version and build.

Below is an overview of the old and the new IP addresses I am using in my network.

DescriptionNS01 (old NetScaler)NS02 (new NetScaler)
NetScaler IP192.168.1.30192.168.1.40
Subnet IP192.168.1.31192.168.1.41
Virtual IP192.168.1.32192.168.1.42
Virtual IP192.168.1.33192.168.1.43
Virtual IP192.168.1.34192.168.1.44
Virtual IP192.168.1.35192.168.1.45

In my homelab setup I don’t have a High Availability (HA) NetScaler configured. If you need an HA pair in your new setup, just follow the steps in this post for only one new NetScaler. When everything is copied and running on the new NetScaler, just add the second NetScaler, create your HA pair, and everything should sync fine.

Setup and configure your new NetScaler

We will start with the setup and configuration of the new NetScaler. The following things need to be setup on the new NetScaler:

  • NSIP
  • SNIP
  • DNS / TimeZone
  • License

Start you new NetScaler virtual machine and enter the initial setup information.

Log into your NetScaler to start the setup wizard. Choose your option on the Citrix User Experience Improvement Program.

Click on Subnet IP Address. Enter the IP and click on Done.

Click on Host Name, DNS IP Address and Time Zone.

Enter the information, select the time zone and click on Done.

The NetScaler will reboot now to apply the changes. Click on Yes.

After the reboot log into the NetScaler management and click on Licenses.

Allocate your NetScaler license using you Citrix account. The license needs to be allocated using the system ID, displayed on the right side. Select Upload license files and click on Browse to select the license file you have allocated.

After the license file is imported successfully, click on Reboot.

After the reboot log into the NetScaler management. You will be presented with an overview of the features activated by your license. Now you can see the model number according to your license. Close the License overview window.

Copy certificate files to the new NetScaler

The next step is to make sure all your certificates are available on the new NetScaler. For this I will be using WinSCP. Using the Secure File Transport Protocol (SFTP) option in WinSCP I can easily copy files from the NetScaler. Feel free to use your favorite editor or tool to connect to the NetScaler to get the files.

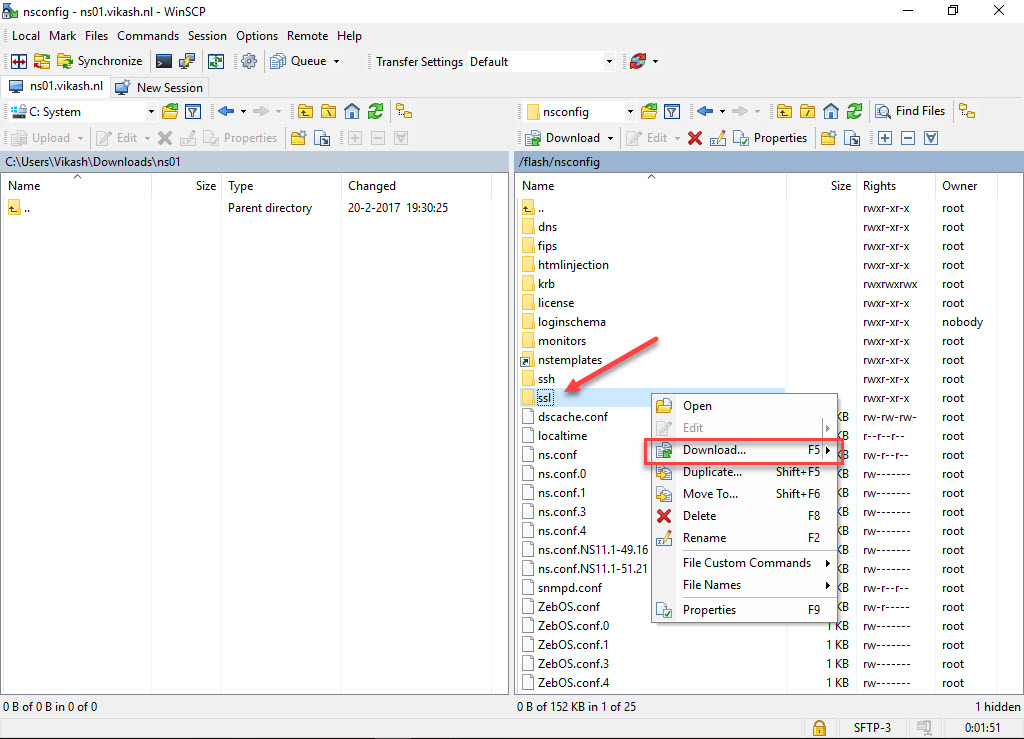

Get the certificates from your old NetScaler. Log into the NetScaler using WinSCP and browse to /flash/nsconfig. Select the ssl directory and download it to your computer.

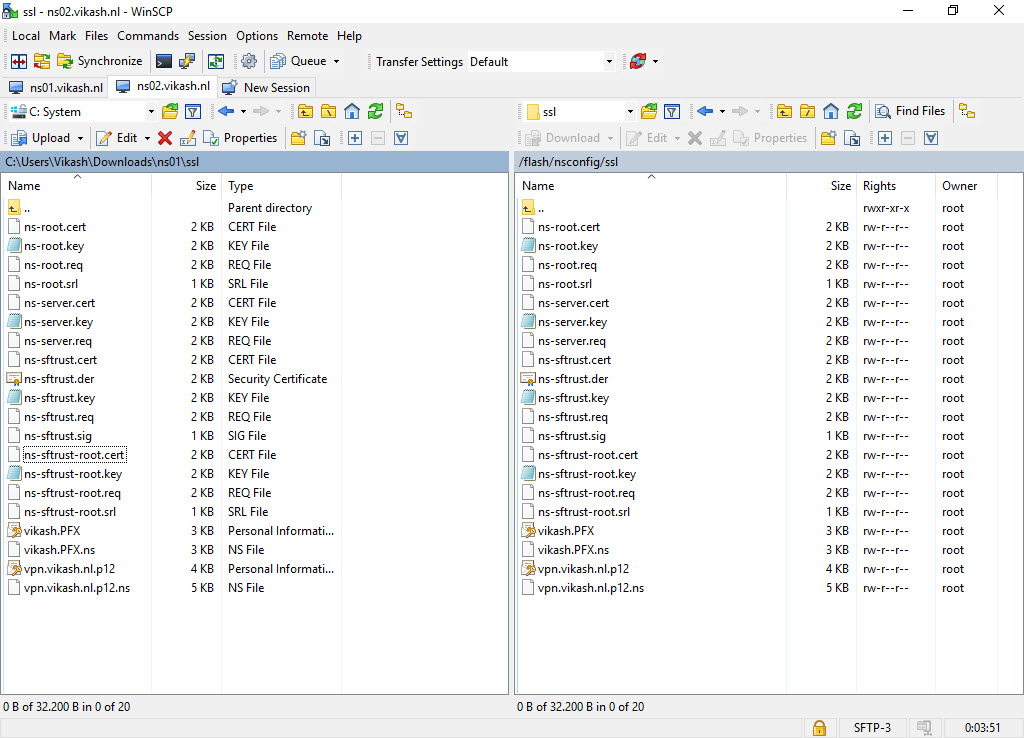

Upload the certificates in the ssl directory to your new NetScaler. Log into the new NetScaler and browse to /flash/nsconfig/ssl. Select the certificates you downloaded in the previous step and upload them to this directory.

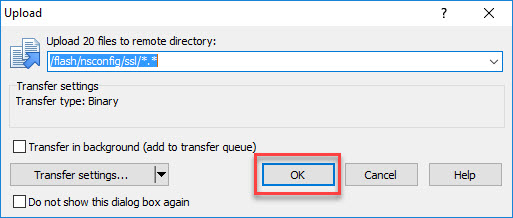

Check the directory and click OK.

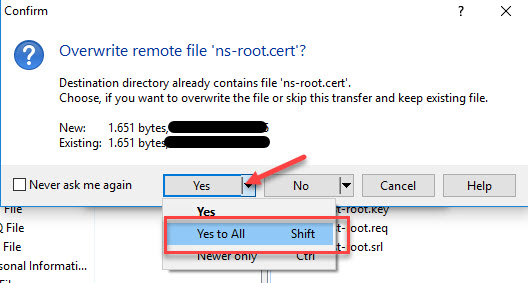

Select Yes to All to confirm overwriting existing certificates on your new NetScaler.

So now the certificates from your old NetScaler should be available on the new one.

Download NetScaler configuration file from old NetScaler

Using WinSCP go back to your old NetScaler and get the ns.conf file. This is the file where all the configuration is stored and we will modify and import this on the new NetScaler.

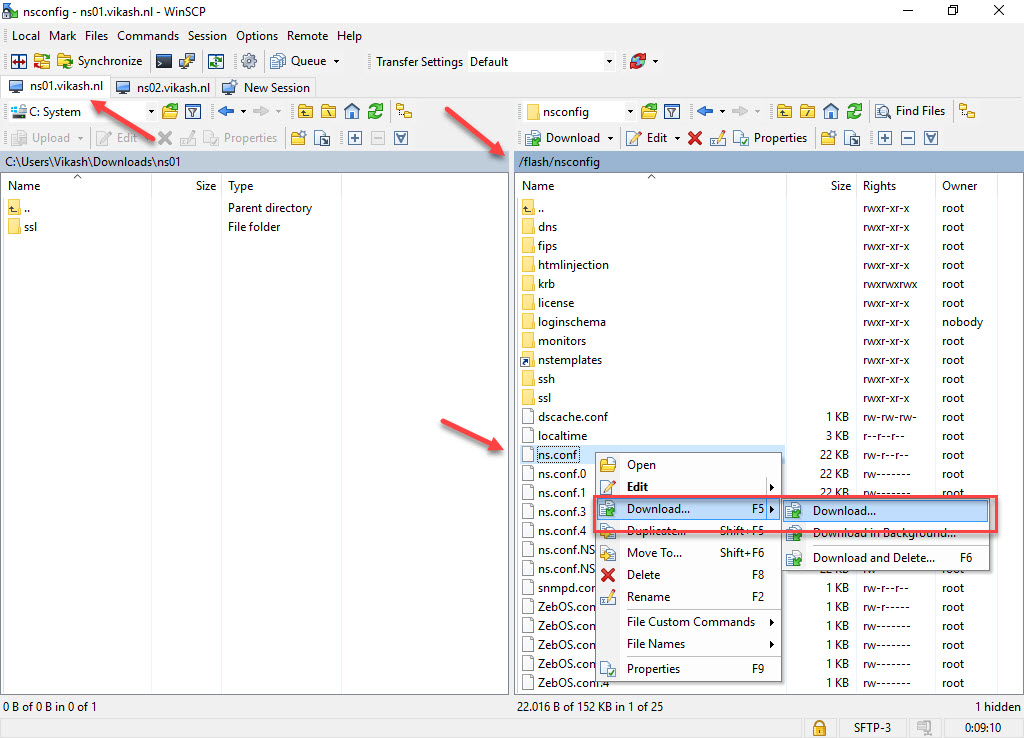

Start by saving your configuration to make sure that everything is written to the ns.conf. Browse to /flash/nsconfig and select the ns.conf. Then click on Download.

Prepare NetScaler configuration file

We have to modify the ns.conf file before we can import it on the new NetScaler. Rename the file in WinSCP.

Upload the renamed file to your new NetScaler in the directory /var/tmp. This is the directory we will use to import the file later.

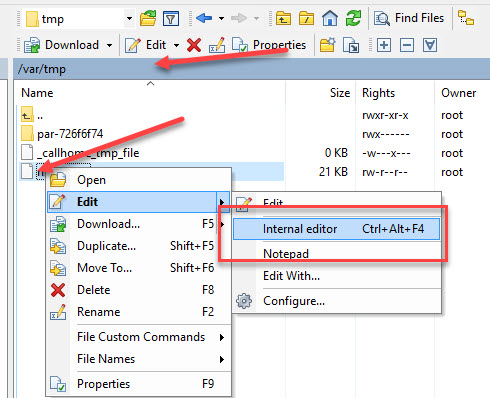

With the renamed ns.conf uploaded to the new NetScaler, it is time to edit it. Right-click the file and click on Edit -> Internal Editor in WinSCP.

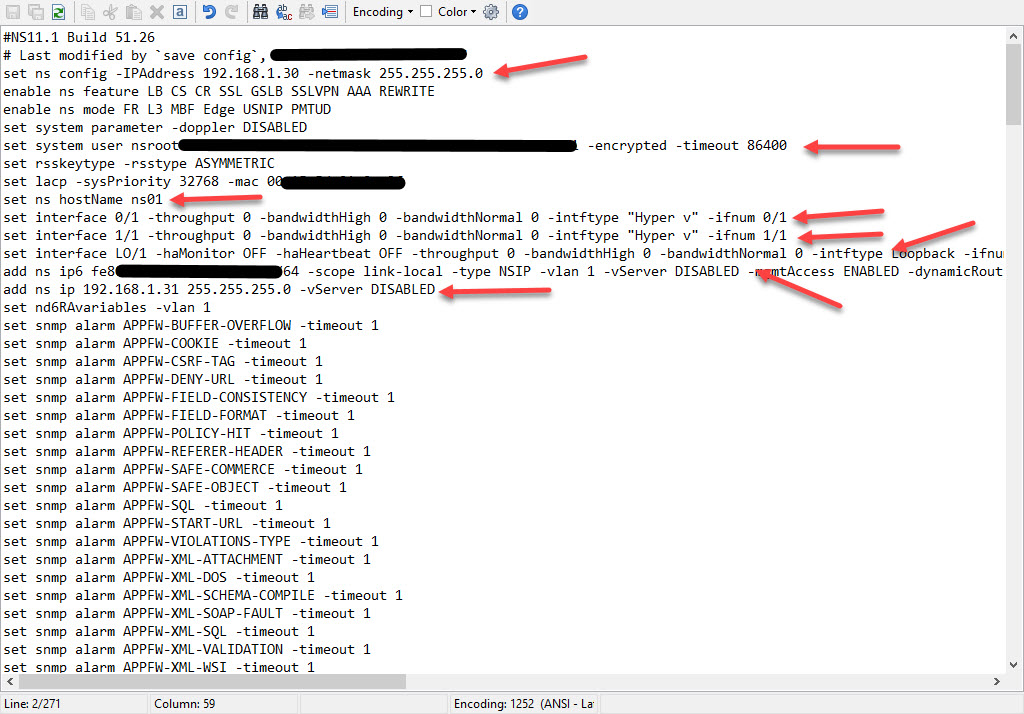

We have to anonymize this file for the new NetScaler, so every object here which is bound to the old NetScaler we have to delete. Let’s remove at least the following lines in this file:

  • set ns config -IPAddress
  • set lacp
  • set ns hostname
  • add route (all of the routes)
  • set system user nsroot
  • set interface (all of them)
  • add ns ip6

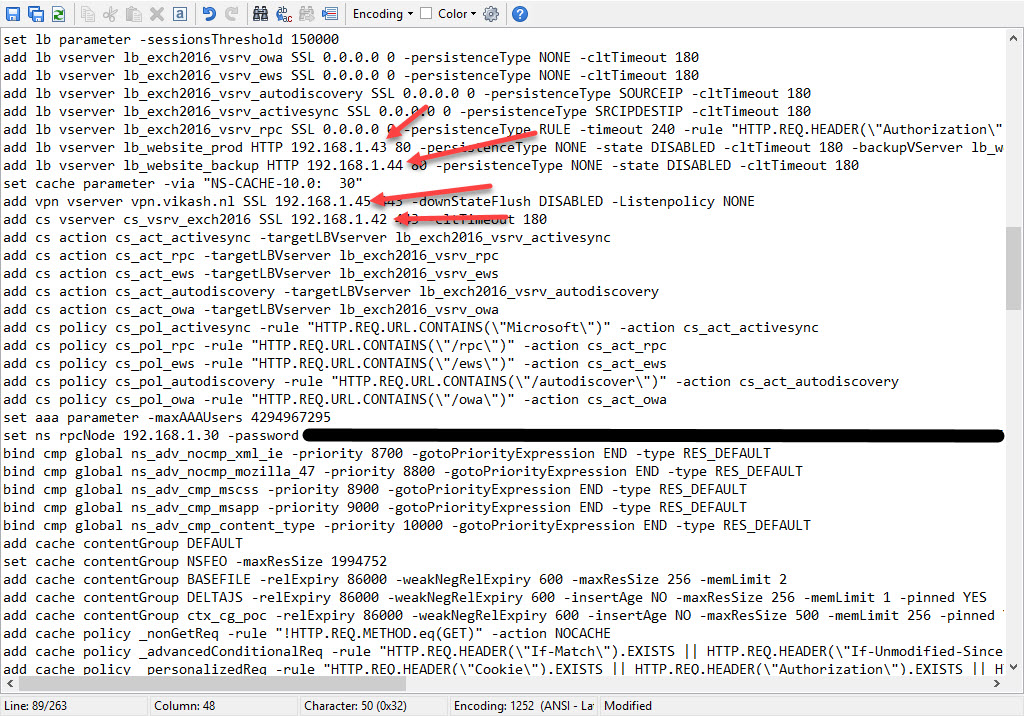

The next step is to replace the IP addresses for the SNIP and the VIP with the new ones. Just scroll do the file and change them, or use find and replace in your editor. Then save the file.

Import the configuration on your new NetScaler

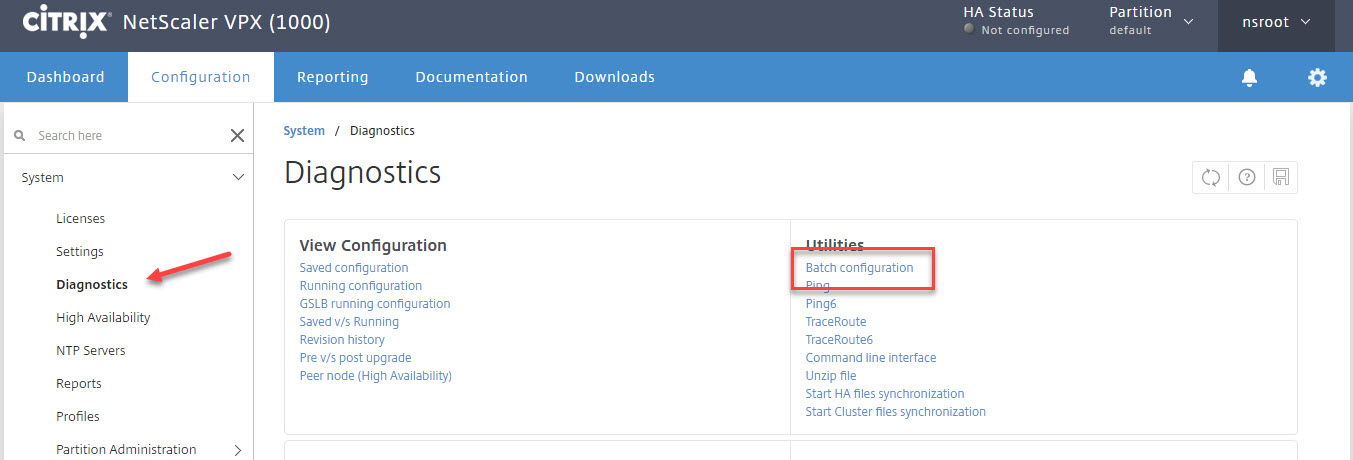

Now we can import the file in the new NetScaler. Log into your new NetScaler (web) and navigate to System -> Diagnostics. Then click on Batch configuration.

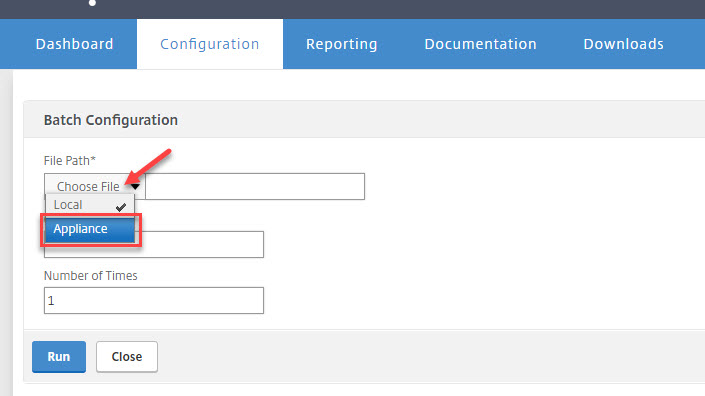

Click on Choose File and then on Appliance.

Select the file we edited and prepared for import in the steps above. Click on Open.

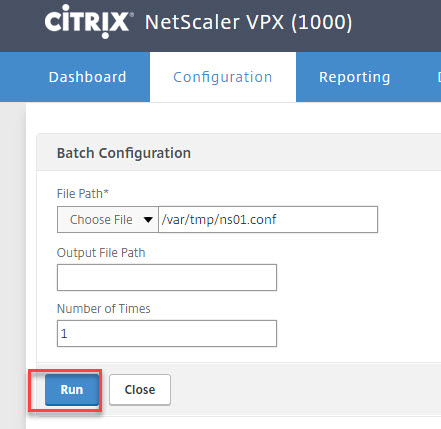

Click then on Run to start the import.

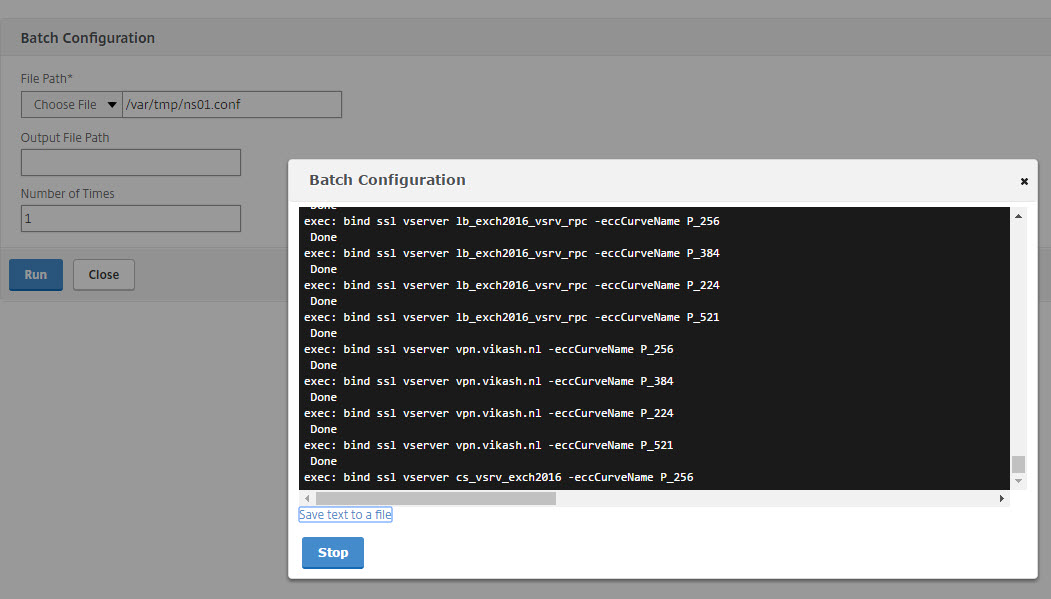

The import will start.

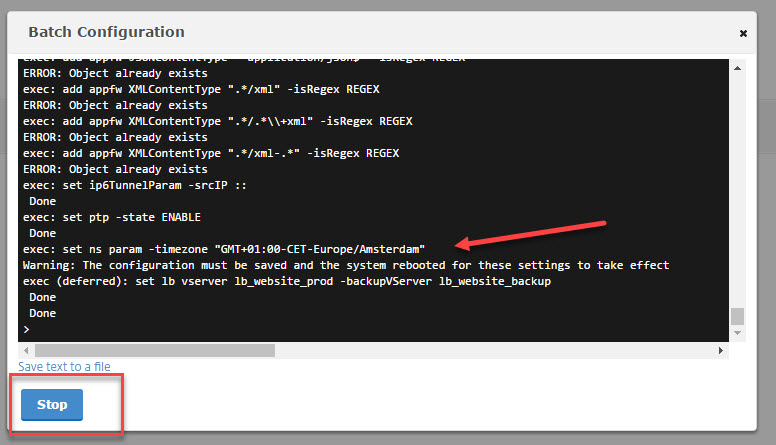

When the import is finished you will see a message that a system reboot is needed. Click on Stop.

Go to System and click on Reboot.

Make sure Save configuration is checked and click on OK.

After the reboot login to your NetScaler.

Check the IP addresses. Go to System -> Network -> IPs -> IPV4s. The list should show you only the new IP addresses.

This concludes this blog post. Feel free to contact me of you have any questions or comments.

You can follow me on twitter or add the RSS feed from my blog and you will be notified when I add new posts.

Copy NetScaler configuration and change all the IPs Read More
